3D Assets

It's an augmented reality app, so it's not fun without some 3D assets!

Adding assets​

The first thing we need to do is to add some assets to the scene. In AFRAME, we do this by a-assets. Add this block of code inside the <a-scene/> element


<a-assets>
  <a-asset-item id="glassesModel" src="https://cdn.jsdelivr.net/gh/hiukim/mind-ar-js@1.1.4/examples/image-tracking/assets/glasses/scene.gltf"></a-asset-item>
</a-assets>

It's a 3D glasses model in gltf format. AFRAME basically supports all the standard 3D format, so you can probably replace it with the models of your choices later.

Update the scene​

Now we can replace the dull sphere in the earlier example with this glasses. We also changed the anchorIndex to 168 because that is a better position for glasses.

<a-entity mindar-face-target="anchorIndex: 168">
  <a-gltf-model rotation="0 0 0" position="0 0 0" scale="0.01 0.01 0.01" src="#glassesModel"></a-gltf-model>
</a-entity>

The scale 0.01 is set by trial-and-error. It depends on the original size of the 3D models.

Putting it together​

Putting it together, your html page is something like below.


<html>
  <head>
    <meta name="viewport" content="width=device-width, initial-scale=1" />
    <script src="https://cdn.jsdelivr.net/gh/hiukim/mind-ar-js@1.1.4/dist/mindar-face.prod.js"></script>
    <script src="https://aframe.io/releases/1.2.0/aframe.min.js"></script>
    <script src="https://cdn.jsdelivr.net/gh/hiukim/mind-ar-js@1.1.4/dist/mindar-face-aframe.prod.js"></script>
  </head>
  <body>
    <a-scene mindar-face embedded color-space="sRGB" renderer="colorManagement: true, physicallyCorrectLights" vr-mode-ui="enabled: false" device-orientation-permission-ui="enabled: false">
      <a-assets>
	<a-asset-item id="glassesModel" src="https://cdn.jsdelivr.net/gh/hiukim/mind-ar-js@1.1.4/examples/image-tracking/assets/glasses/scene.gltf"></a-asset-item>
      </a-assets>

      <a-camera active="false" position="0 0 0"></a-camera>
      <a-entity mindar-face-target="anchorIndex: 168">
	<a-gltf-model rotation="0 0 0" position="0 0 0" scale="0.01 0.01 0.01" src="#glassesModel"></a-gltf-model>
      </a-entity>
    </a-scene>
  </body>
</html>

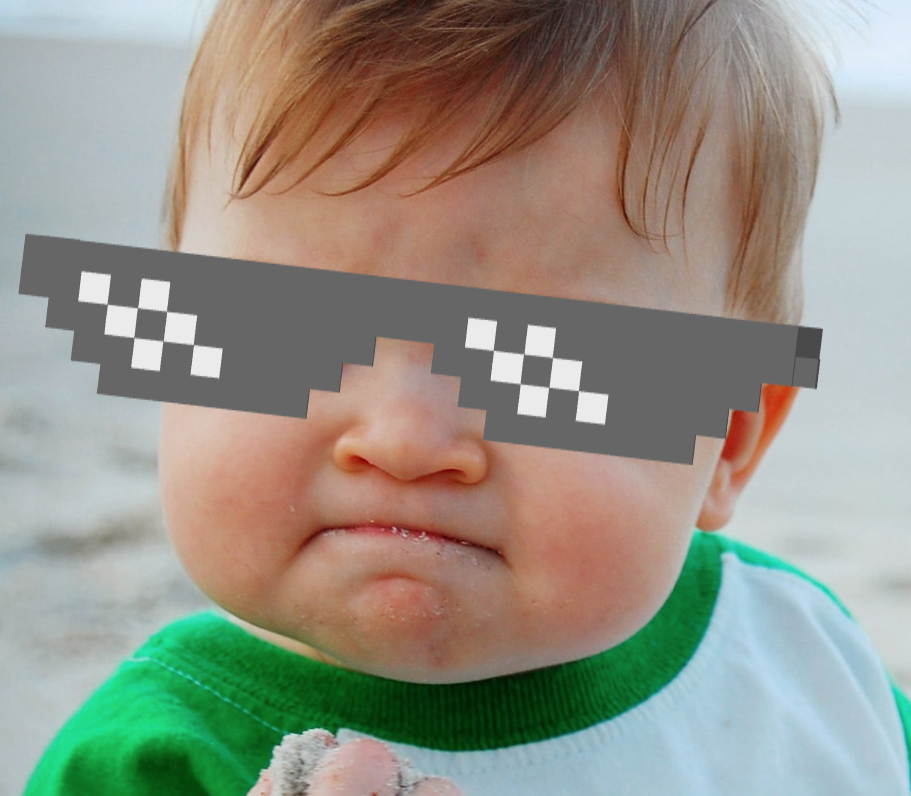

If everything works correctly, you should see something like this:
